dynaGear servowinkel getriebeDynaGear – The highly dynamic servo right-angle gearbox.

The design of the DynaGear range has been influenced by extremely varied applications within many industry sectors. The DynaGear range has been developed with a highly dynamic servo drive solution in mind and therefore benefits from many advantages.

Dynamic and Precision in small format - our new size DynaGear D37  is designed for highly dynamic servo drive solutions in compact applications.

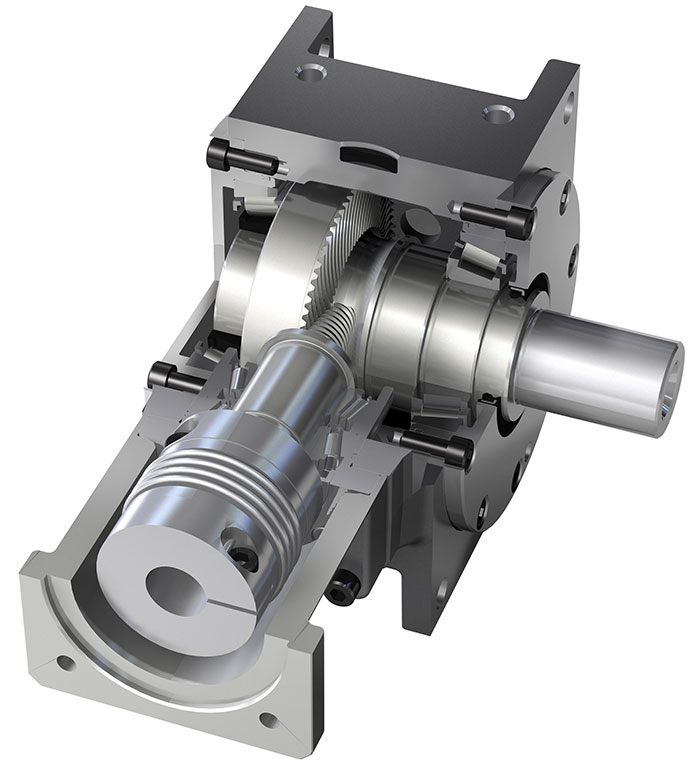

Internal Highlights

  • Right-angle gearbox, single-stage, ratios from 3:1 to 15:1, two-stage up to 150:1
  • The compact and rigid design ensures highest performance whilst being space and weight efficient.
  • Lubricated for life, the gearboxes are virtually maintenance-free (when used under normal conditions).
  • The high efficiency rating of 96% saves energy costs (92 % at DG-HR).


External Highlights

  • The DynaGear fits all current servo motors by way of input flanges and couplings to suit.
  • Torsional vibration can be adjusted via the coupling stiffness.
  • The gearbox dimensions are identical for all ratios.
  • New configuration with robot flange according to EN ISO 9409-1 and hollow shaft enables lead-through of supply lines and other media.




Options

  • Shafts in stainless steel design and/or housing in anodised design on request
  • If required, fi lling with oil or grease approved for use with foodstuffs
  • On request with mounted brake available
  • Optionally with integrated pinion for rack and pinion drive
The highly dynamic single-stage servo right-angle gearbox


  • 9 sizes from D37 to D190
  • Ratios from i = 3:1 to i = 15:1
  • Input speed up to 8000 min-1
  • Solid or hollow shaft version, hollow shaft version with robot flange

The highly dynamic two-stage servo right-angle gearbox with additional transmission options

  • 8 sizes, from D55HR to D190HR
  • Ratios from i = 16:1 to i = 150:1
  • Input speeds up to 6000 min-1
  • Solid and hollow shaft version, hollow shaft version with robot flange
