PowerGear P-Version – The high performance standard bevel gearbox
The standard bevel gearbox PowerGear P-Version shows it’s strength in applications which depend on the following characteristics:- High torque at smaller to medium input speeds
- Limited weight and smallest dimensions
- Sturdy, reliable and maintenance-free design
| Sizes | 12 gearbox sizes from P54 to P450 | |
| Configurations | L, H, FL, FH | |
| Ratios | from i = 1:1 to 5:1 | |
| Shaft arrangement |
WA 1, WA 3, WA 13 | |
| Input speed n1max | up to 7500 min-1 | |
| Motor mounting |
direct mounting with hollow shaft/flange |
Configuration FL
Input with hollow shaft and flange. Output with
solid shaft on both sides or on one side.
Input with hollow shaft and flange. Output with
solid shaft on both sides or on one side.
Configuration L
Input and output with solid shaft. Output on
both sides or on one side.
Input and output with solid shaft. Output on
both sides or on one side.
Configuration FH
Input with hollow shaft and flange. Output with
hollow shaft and feather key groove.
Input with hollow shaft and flange. Output with
hollow shaft and feather key groove.
Configuration H
Input with solid shaft. Output with hollow shaft
and feather key groove.
Input with solid shaft. Output with hollow shaft
and feather key groove.
Performance table
[Click on image]
[Click on image]

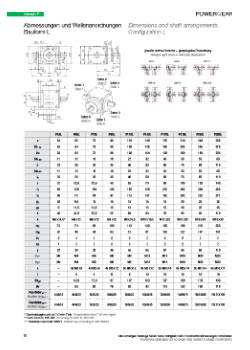

Dimensions and shaft arrangements
[Click on image]
[Click on image]
